Dubai Generator Rental Calculator resolves active kW power, 400V 3-phase DEWA amperage, DOL/Star-Delta/VFD motor starting surge multipliers, and hourly diesel burn rates across a live Dubai generator rental chart. If inductive crane or pump loads start simultaneously, then peak transient kVA governs alternator sizing.

DOL Surge Factor
6.0× Running kVA
Star-Delta / VFD
3.0× / 1.25× Surge
DEWA Voltage Drop
≤ 4.0% Max (16.0V)
Fuel Benchmark
0.291 L/kWh @ 75%
Motor Inrush Surge & Voltage Drop OscilloscopeBS 7671 ΔV ≤ 4.0%
PEAK: 168.8 kVAΔV: 1.98%
Running Load56.3 kVA0.80 Lagging PF
Peak Starting kVA168.8 kVA243.6 A Peak
Feeder Drop1.98%400V H07RN-F
50°C Genset Match250 kVACummins QSL9
Inspect Perkins & Cummins Specs →

Notice: This calculation engine models published statutory formulas and regulatory codes for informational and planning purposes only. It does not provide certified legal, medical, veterinary, tax, or engineering advice. For definitive rulings, consult an actively licensed professional in your jurisdiction.

02Dubai Generator Rental Chart • Amperage & Fuel Matrix

How Does the Dubai Generator Rental Chart Map kVA, 400V Amps & Motor Starting Surges?

Dubai Generator Rental Calculator benchmarks nominal kVA ratings against 400V 3-phase line current, 50°C derated output, and maximum allowable single-motor starting kW across DOL (6.0×), Star-Delta (3.0×), Soft Starter (2.5×), and VFD (1.25×) configurations. If a construction hoist or dewatering wellpoint pump exceeds 35% transient voltage dip on startup, then step up one generator frame size in the chart below.

Rated kVA / kW400V 3-Phase Amps50°C Derated kVAMax DOL Motor (6.0×)Max Star-Delta (3.0×)Max VFD Motor (1.25×)50% / 75% / 100% Fuel (L/hr)
20 kVA (16 kW)28.9 A17.0 kVA2.3 kW4.5 kW10.9 kW2.7 / 4.0 / 5.3 L/hr
60 kVA (48 kW)86.6 A51.0 kVA6.8 kW13.6 kW32.6 kW7.1 / 10.4 / 13.7 L/hr
100 kVA (80 kW)144.3 A85.0 kVA11.3 kW22.7 kW54.4 kW11.9 / 17.5 / 23.1 L/hr
150 kVA (120 kW)216.5 A127.5 kVA17.0 kW34.0 kW81.6 kW17.7 / 26.0 / 34.3 L/hr
250 kVA (200 kW)360.8 A212.5 kVA28.3 kW56.7 kW136.0 kW28.6 / 42.0 / 55.4 L/hr
500 kVA (400 kW)721.7 A425.0 kVA56.7 kW113.3 kW272.0 kW57.8 / 85.0 / 112.2 L/hr
1000 kVA (800 kW)1443.4 A850.0 kVA113.3 kW226.7 kW544.0 kW119.0 / 175.0 / 231.0 L/hr
1250 kVA (1000 kW)1804.2 A1062.5 kVA141.7 kW283.3 kW680.0 kW146.2 / 215.0 / 283.8 L/hr
Equation 2 — Peak Motor Starting Surge (kVA) & 3-Phase Feeder Voltage Drop (%):
Ssurge = Pmotor,kW cos(φ) × Kstarter , ΔV% = 3×I×L×Zcable 400 × 100

Where K_starter equals 6.0 (DOL), 3.0 (Star-Delta), 2.5 (Soft Starter), or 1.25 (VFD), and ΔV_% must remain strictly below 4.0% per DEWA and BS 7671:2018+A2:2022 standards.

INTERACTIVE CAD TELEMETRY & COMMERCIAL TCO WORKBENCH

400V 3-Phase H07RN-F Feeder Voltage Drop Solver & 30-Day Fuel vs Base Rate Bar Chart

150 mm² Cu • 45m RunGEN 400V MCCBI = 360 A50Hz • PF 0.8SITE MDB BUSV = 394.6 VELCB < 5.0 ΩΔV = 5.4V (1.35%) — DEWA PASS (≤4%)
30-DAY TOTAL COST OF OWNERSHIP BREAKDOWN (12 HRS/DAY @ 75% LOAD)
Monthly Base Hire (AED) 30-Day Diesel Fuel @ 3.15 AED/L
60 kVA (Perkins)Total: 15,994 AED/mo (26% Hire / 74% Fuel)
100 kVA (Cummins)Total: 25,645 AED/mo (23% Hire / 77% Fuel)
150 kVA (Perkins)Total: 36,984 AED/mo (20% Hire / 80% Fuel)
250 kVA (Cummins)Total: 58,828 AED/mo (19% Hire / 81% Fuel)
500 kVA (Perkins)Total: 117,390 AED/mo (18% Hire / 82% Fuel)
1000 kVA (Cummins)Total: 236,450 AED/mo (16% Hire / 84% Fuel)
LIVE AL QUOZ DEPOT TELEMETRY:84% Summer Peak Fleet Reserved • 14 Soundproof Units Ready for 90-Min Dispatch
1-CLICK PROJECT ARCHETYPE QUICK-ESTIMATOR

Select Your Construction or Industrial Site Profile for Instant DEWA Spec & AED Rate

Selected Project ArchetypeTower Crane & Hoist Package
Recommended Generator SetCummins QSL9-G5 (250 kVA)
400V Line Current & Starter360.8 A @ 400V • Star-Delta / VFD (3.0× / 1.25×)
Monthly Rate & 75% Fuel Burn11,200 AED / Month • 42.0 L/hr @ 75% Load
💬 1-Click WhatsApp Dispatch Quote →
03DEWA 400V Busbar & Camlock Distribution

How Are 400V Main Distribution Boards (MDB) & ATS Switchgear Sized?

Calculator Dubai Generator Rental validates switchgear amperage ratings (63A, 125A, 250A, 400A, 800A, 1600A, and 2500A) and H07RN-F flexible rubber copper cable cross-sections (16 mm² to 240 mm² per phase). Every temporary generator deployment in Dubai requires an adjustable 4-pole Moulded Case Circuit Breaker (MCCB) paired with a 30mA to 300mA Earth Leakage Circuit Breaker (ELCB) and a certified solid copper earthing rod maintaining ground resistance below 5.0 Ohms.

  • 20 kVA – 60 kVA (28.9A – 86.6A): 5-pin 32A / 63A / 125A CEE industrial sockets + 16 mm² to 35 mm² 5-core flexible rubber cable.
  • 100 kVA – 250 kVA (144.3A – 360.8A): Direct copper busbar or 400A Camlock quick-disconnects + 70 mm² to 150 mm² single-core H07RN-F cables.
  • 500 kVA – 1250 kVA (721.7A – 1804.2A): Parallel runs of 240 mm² flexible single-core copper cables + Deep Sea DSE8610 motorized breaker synchronization.

Worked Engineering Case Study: Tower Crane + Submersible Dewatering Pump

Consider an active Business Bay basement excavation operating a 45 kW tower crane hoist motor on a Variable Frequency Drive (VFD, 1.25× starting multiplier), two 22 kW submersible wellpoint dewatering pumps on Star-Delta starters (3.0× starting multiplier), and 30 kW of resistive site welfare cabin air conditioning at a 50°C ambient summer peak.

Staggering the motor start sequence so the two 22 kW dewatering pumps engage first yields an initial transient surge of (22 kW / 0.80) × 3.0 = 82.5 kVA per pump. Once both pumps stabilize at 55.0 kVA combined running load, starting the 45 kW VFD tower crane adds (45 kW / 0.80) × 1.25 = 70.3 kVA peak demand plus 37.5 kVA for the site cabins, totaling 162.8 kVA peak demand. Applying the 50°C Dubai summer derating factor of 0.85 (162.8 / 0.85 = 191.5 kVA), a 250 kVA Cummins C250D5 (delivering 212.5 kVA continuous derated output and 360.8 Amps at 400V) provides a compliant 89.9% peak transient margin without tripping the 400A MCCB breaker.

DEWA 400V 3-phase Main Distribution Board and Automatic Transfer Switch with heavy copper busbars and earthing bar
✨ AI Visual • Verified by UAE Power Desk

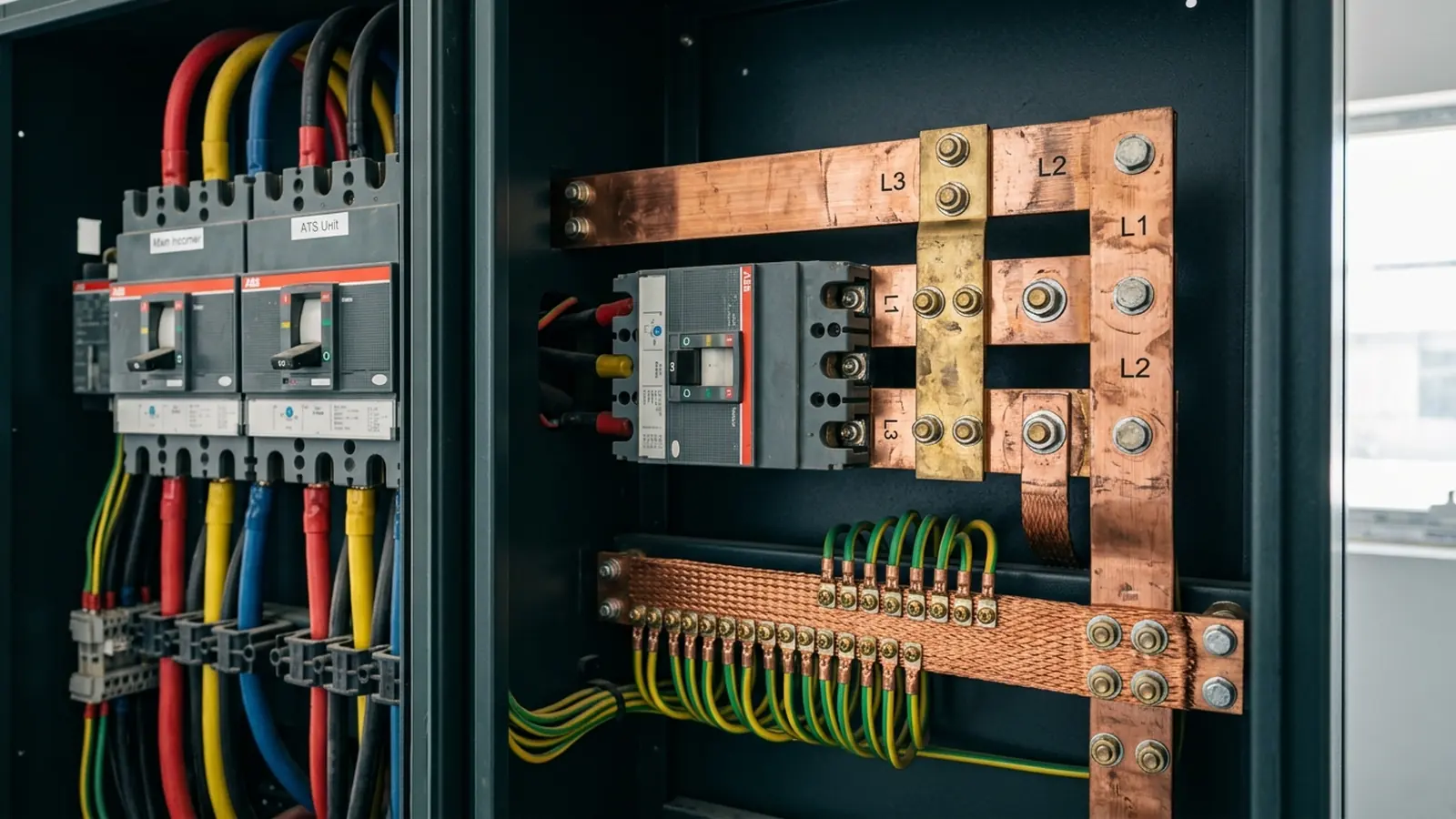

Figure 2.1 — 400V 3-Phase 50Hz Main Distribution Board (MDB) interior showing brushed copper phase busbars, MCCB protection, and BS 7671 copper earthing bar.
